Supply of the emergency genset by a 5000 A power distribution
In our application we control and monitor an emergency power supply with an apparent power of 3150 kVA. The resulting rated current is 4547 A. In order to provide this apparent power for the consumers under the technical regulation IEC 61439-2, we use the design-verified xEnergy-System by EATON.
The design, engineering and production of energy distribution system depends on the technical requirement of the customer. This application describes how we specified and produced this energy distribution system.

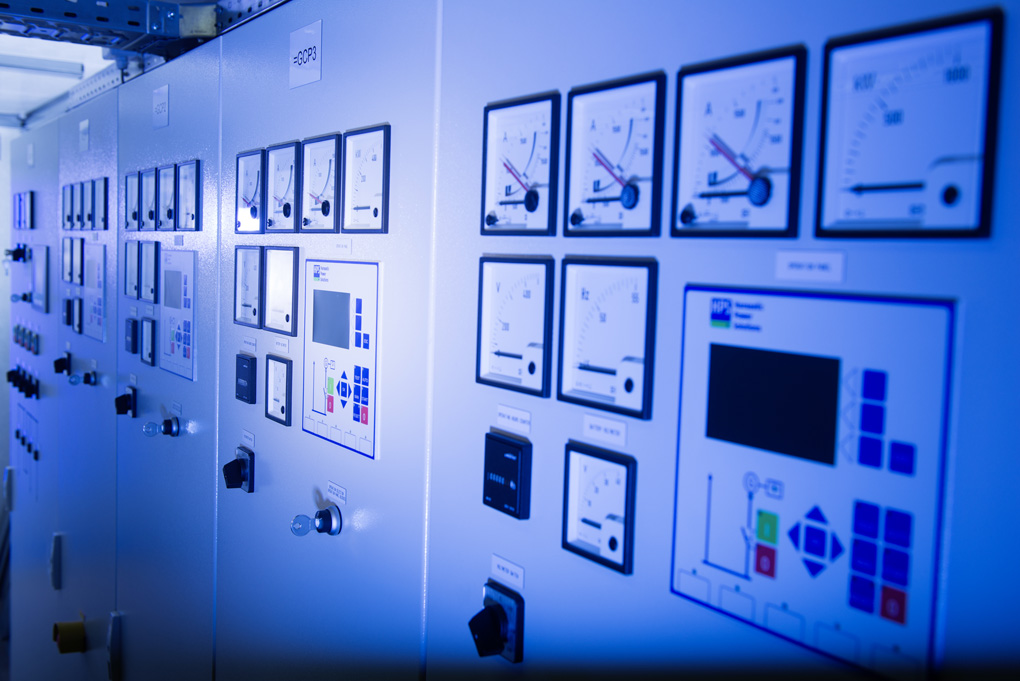

Energy distribution
| Degree of protection | = IP 31 |
| Cable entry | = from top |
| Degree of internal separation | = form 4b |

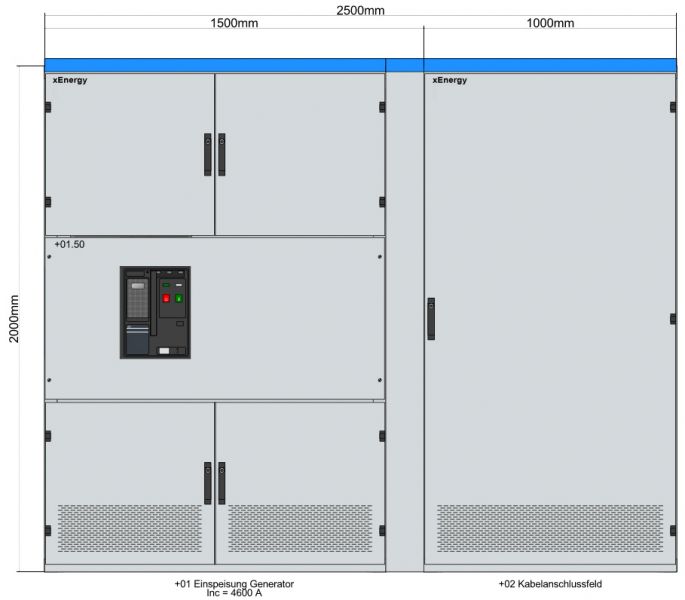

| Cubicle height | = 2000 mm |
| Cubicle width | = 2500 mm (total width) |
| Cubicle depth | = 1000 mm |

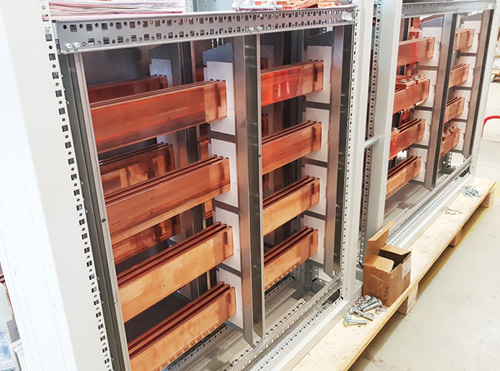

Main bus bar
| Nominal voltage | = 400 VAC |
| Nominal frequency | = 50 Hz |
| Nominal current | = 5000 A |
| Icw | = 100 kA (1s) |

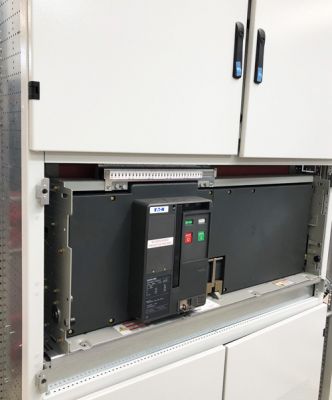

Generator circuit breaker
| Breaker type | = circuit breaker (protection via secondary activation) |
| Poles | = 4-pole |
| Rated current | = 5000 A |
| Rated operational current | = 4600 A (incl. derating) |
| Rated breaking capacity | = 100 kA |
| Design | = drawer technique with cassette |
| Motor drive | = 230 VAC |
| Closing coil | = 230 VAC |
| Shunt release | = undervoltage release 24 VDC |

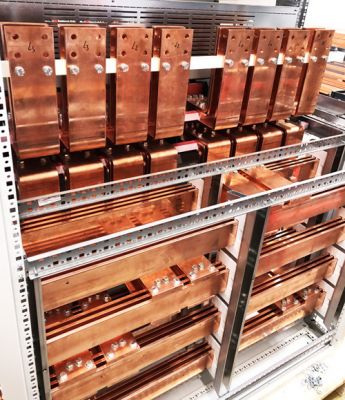

With the air disconnecting breaker/circuit breakers of the series IN63/IZM63 by EATON the copper bars needs to be connected twice per phase (L1/L2/L3/N) to the disconnecting breaker /circuit breakers. Due to this type of connection the power heat losses can be dissipated easier and the disconnecting breaker /circuit breaker full load capactity can be increased. In order to measure the actual current correctly, we implemented two current transformers per phase (L1/L2/L3) and read in both of them by a summation current transformer into the genset control KAS.
We can adjust the protection settings with selectivity calculation (overcurrent/short circuit) optimally to the local regulations by our genset control KAS.
With the EATON xEnergy system we can design and produce various customized applications.
If you have any questions regarding this application or other concepts, please do not hesitate to contact our technical sales staff at any time.
